Installed by Newy Solar Co · Newcastle & the Hunter
EcoFlow
OCEAN 2Two distinct Australian configurations, specified separately.
OCEAN 2 Plus single phase supports model-specific 5.02 kWh and 8.03 kWh modules, while OCEAN 2 three phase uses the 8.03 kWh module. We name the exact configuration in the written quote.
5.02 / 8.03kWh
Published single-phase module options
8.03kWh
Published three-phase module
8–12kW
Single-phase inverter range
6–12kW
Three-phase inverter range
Official EcoFlow product film
Next level all-in-one.
See how the inverter, battery modules and integrated controls come together as one OCEAN 2 system.
8.03 kWh
8.03 kWh nominal module · compatible single- and three-phase configurations
0 ms
Manufacturer claim under supported conditions
24 kW
Maximum three-phase PV input
Published OCEAN 2 features
Read the claims with their conditions.
EcoFlow describes a detailed protection framework for OCEAN 2. It is the manufacturer's framework, not comparative proof that this battery is safer than AlphaESS or GoodWe.
IP66 enclosure rating
EcoFlow lists IP66 for the inverter and battery packs. The installation location must still meet the product instructions, site risks and Australian requirements.
Published passive protection
Aerogel thermal insulation, fire-resistant barriers, a built-in fire-prevention module and an explosion-proof pressure-relief valve form part of the passive protection stack.
Published active monitoring
Temperature sensors, a dedicated BMS monitoring chip, active balancing and cloud early-warning monitor the battery rather than relying on the enclosure alone.
Die-cast structure
EcoFlow documents a die-cast aluminium-alloy enclosure and IP66 rating. The installation location must still meet the product instructions and Australian requirements.

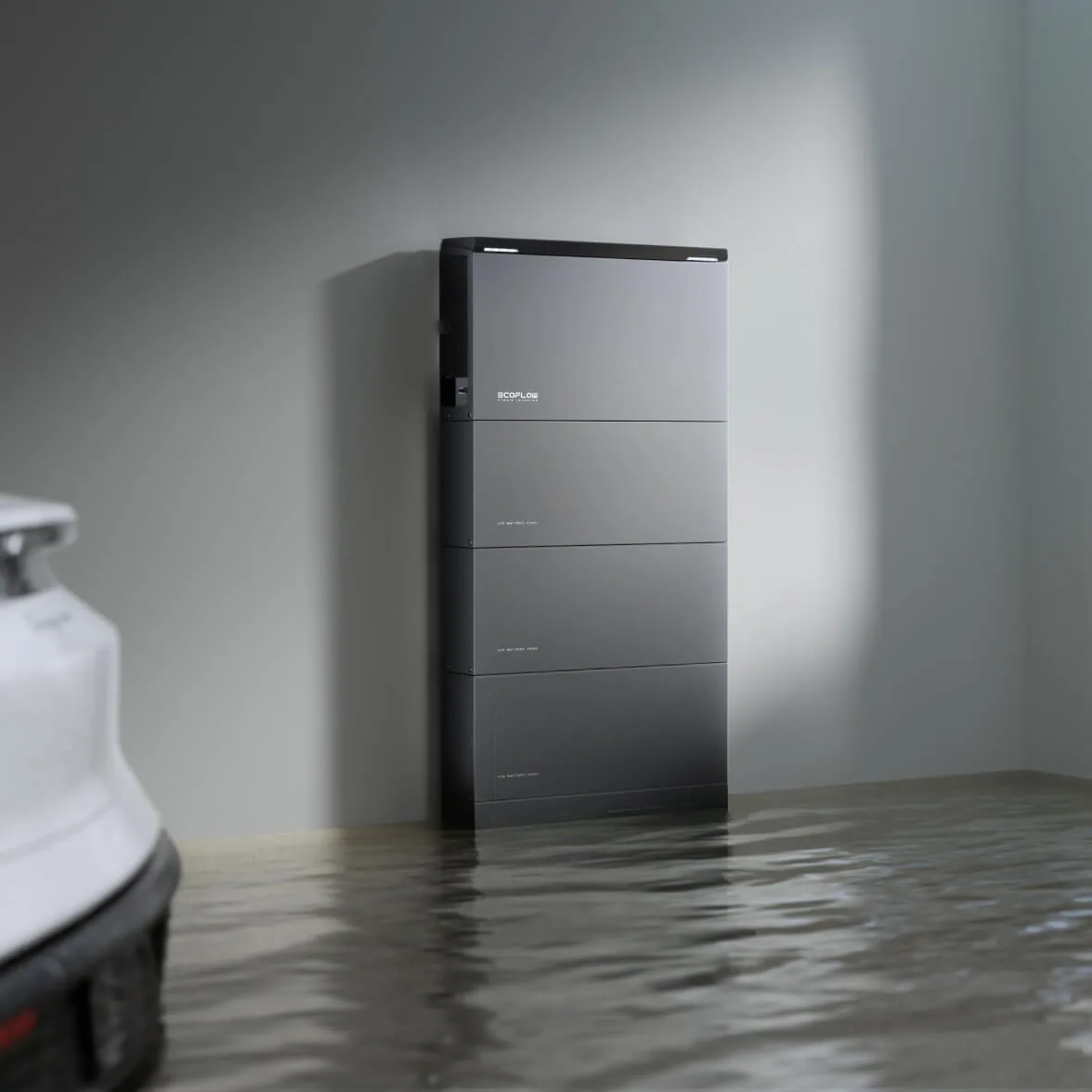

Environmental resilience
IP66 equipment, installed to site conditions.
The inverter and battery packs are listed IP66. That rating is one input to the installation design, not permission to place equipment in a flood-prone location.
Equipment position, cabling, clearances, site hazards and the manufacturer's installation requirements still apply.
IP66
Inverter and battery packs
10yrs
8 kWh module standard warranty; optional 5-year extension
Inside the battery safety architecture
Six passive layers. Four active layers.
EcoFlow groups these items as a ten-layer protection system. That is EcoFlow's own framework and is not a like-for-like safety ranking against other manufacturers' documented protections.
6 passive protections
- Aerogel thermal insulation between cells
- Flexible-circuit short-circuit protection
- Thermal and fire-resistant insulation
- Built-in fire-prevention module
- Explosion-proof pressure-relief valve
- Die-cast aluminium-alloy enclosure
4 active protections
- NTC temperature monitoring
- Dedicated AFE monitoring chip in the BMS
- Multi-MOS active cell balancing
- Cloud BMS anomaly alerts and early warning
These are EcoFlow's published protection layers, not a claim that installation requirements or routine electrical protection can be bypassed.

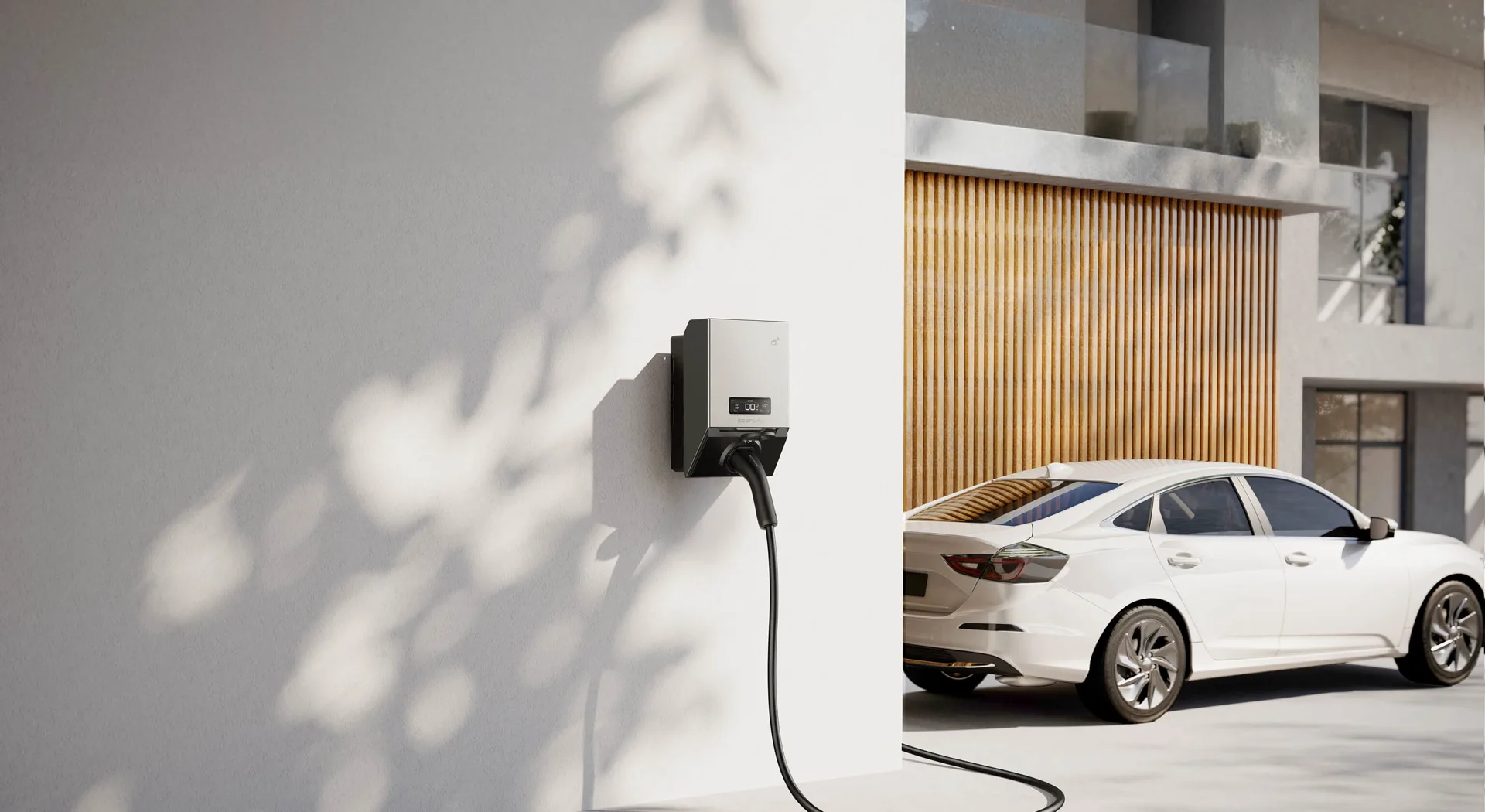

The matching EV charger
EcoFlow PowerPulse 2
EcoFlow lists PowerPulse 2 as compatible with its home energy ecosystem and publishes app-based charging modes. Exact solar, battery and grid behaviour depends on the installed products, site supply and commissioning settings.
Smart mode
A manufacturer-listed app mode. Available behaviour and integration depend on the installed charger, OCEAN configuration and commissioning settings.
Solar mode
A manufacturer-listed mode intended to use available solar generation; actual charging depends on generation, household load and site configuration.
Fast charge
A manufacturer-listed mode that uses the configured available supply, subject to the charger, vehicle and site current limits.
Scheduled charging
A manufacturer-listed app setting for selected charging times; electricity-plan outcomes depend on the customer's retailer and tariff.
PowerPulse 2 specifications
Max output
7.4 kW single-phase / 22 kW three-phase
Rated charging power
3.7 kW single-phase / 11 kW three-phase
System integration
EcoFlow lists integration with compatible OCEAN / PowerOcean systems; confirm the exact products and software configuration
Charging modes
Smart, Solar, Fast Charge and Scheduled, via the EcoFlow app
Start methods
EcoFlow app, RFID card, or simply plug in
Weather rating
IP55 with the cable plugged in (IP54 unplugged) — indoor or outdoor
Dimensions
Approx. 333 × 226 × 145 mm, around 3.5 kg
Warranty
3 years
Adding an EV charger in Newcastle?
Our in-house electricians check your switchboard, supply capacity and phase configuration before recommending a single-phase or three-phase charger. Licence 470217C.
Configuration checks
When an OCEAN 2 configuration can fit.
- Fit: single-phase (OCEAN 2 Plus) or three-phase (OCEAN 2) properties, matched to the site supply
- Fit: three or four 8.03 kWh nominal modules
- Limitation: backed-up circuits must stay within the inverter's continuous and surge limits
The written configuration comes first.
Confirm the single- or three-phase product, exact inverter and modules, nominal and usable capacity, backup circuits, off-grid continuous and surge output, and separate warranties.
Engineered safety
Protection built through the system.
Watch EcoFlow's official safety demonstration, then ask us what applies to your property and installation location.
The decision
The exact configuration decides fit.
The written quote identifies OCEAN 2 Plus single phase or OCEAN 2 three phase, the exact inverter, module count, nominal and usable capacity, and the warranty for each component.
Get an instant EcoFlow OCEAN 2 price in our estimator — from 16 to 48 kWh, single or three phase — with rebates taken off. A free site check confirms phase, switchboard, backup circuits and cable route.
See the full installed estimate
See a starting estimate, then we will size the modular system against your actual usage, solar and backup needs.
Build my EcoFlow estimateVerified specifications
System type
OCEAN 2 Plus single phase and OCEAN 2 three phase are separate configurations
Inverter output — single phase
8 / 10 / 12 kW (OCEAN 2 Plus)
Inverter output — three phase
6 / 8 / 10 / 12 kW (OCEAN 2)
Newy battery module
8.03 kWh nominal LFP module; usable-capacity basis stated on the quote
Newy configuration
3 modules = 24.09 kWh nominal; 4 modules = 32.12 kWh nominal
Solar trackers
3 MPPTs, 1 string per tracker
Max PV input voltage
900 V
Backup
Backed-up circuits, continuous and surge loads are set for the selected inverter
Grid bypass
63 A is on-grid input/bypass, not battery-only or off-grid current
Battery module size
680 × 196 × 378 mm, 67.5 kg, IP66
Battery warranty
Product: 10 years standard for the 8.03 kWh module (EcoFlow AU product pages). Performance: Retained-capacity condition is stated in EcoFlow's AU warranty terms supplied with your quote. Inverter: 15 years (OCEAN 2 Plus single-phase and OCEAN 2 three-phase AU pages). Extension: Optional 5-year battery extension — your quote states whether it is included and its conditions.
Cell-cycle claim (not a warranty)
EcoFlow states 10,000+ cell cycles under its own test conditions
Newcastle & Hunter installation
The technology is global. The accountability is local.
Every system is designed and fitted by our own electricians out of Hamilton — licence 470217C. No subcontractor hand-off, from switchboard assessment through to commissioning.
Local solar and battery project — product model not recordedBefore you choose
Common questions.
01Which OCEAN 2 system is being quoted?
The quote states OCEAN 2 Plus single phase or OCEAN 2 three phase, plus the exact inverter and module count.
02Can it handle a complex roof?
MPPT count and string limits vary by inverter model. We map roof faces, shading and string voltages before setting the PV configuration.
03What warranty comes with it?
EcoFlow's AU pages list 15 years on the inverter and 10 years standard on the 8.03 kWh module, with an optional five-year extension. Your quote states whether the extension is included.
Not sure it is the right fit?
Compare the other systems.
Talk to a local
Ready for a system that fits your home?
Get a quick estimate first, then a tailored quote from our local electricians.
