AlphaESS
SMILE M5 & M10M5 and M10 configurations, specified for the property.
Model-specific 5 kWh and 13.99 kWh battery options with compatible inverter and expansion rules — fitted by our Hamilton-based, in-house electricians across Newcastle and Lake Macquarie.
5kWh
M5 option · 1–6 modules
13.99kWh
M5 option · 1–2 modules
5 / 8–10kW
M5 / M10-S variants
200%
PV oversizing
Official AlphaESS product film

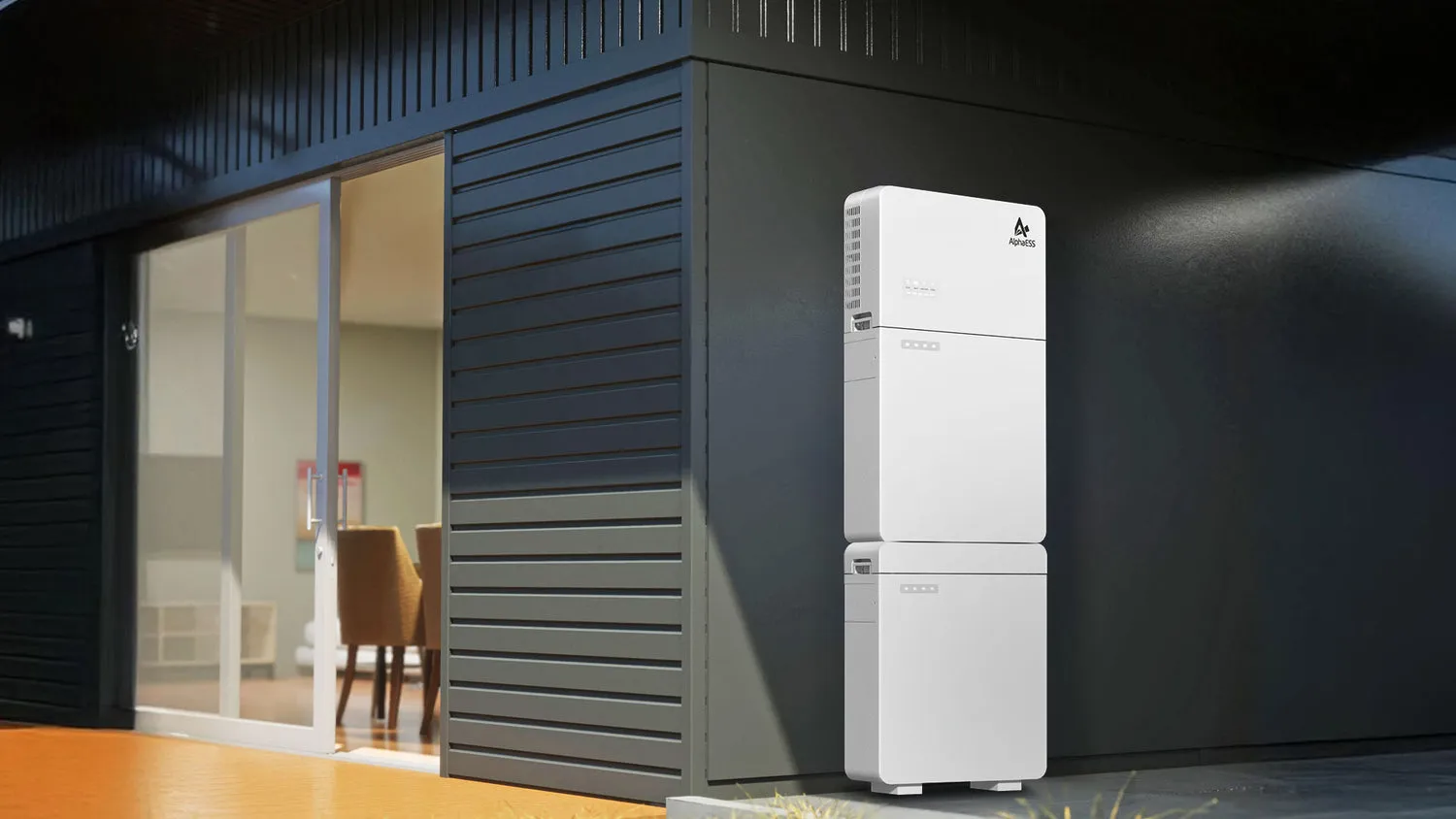

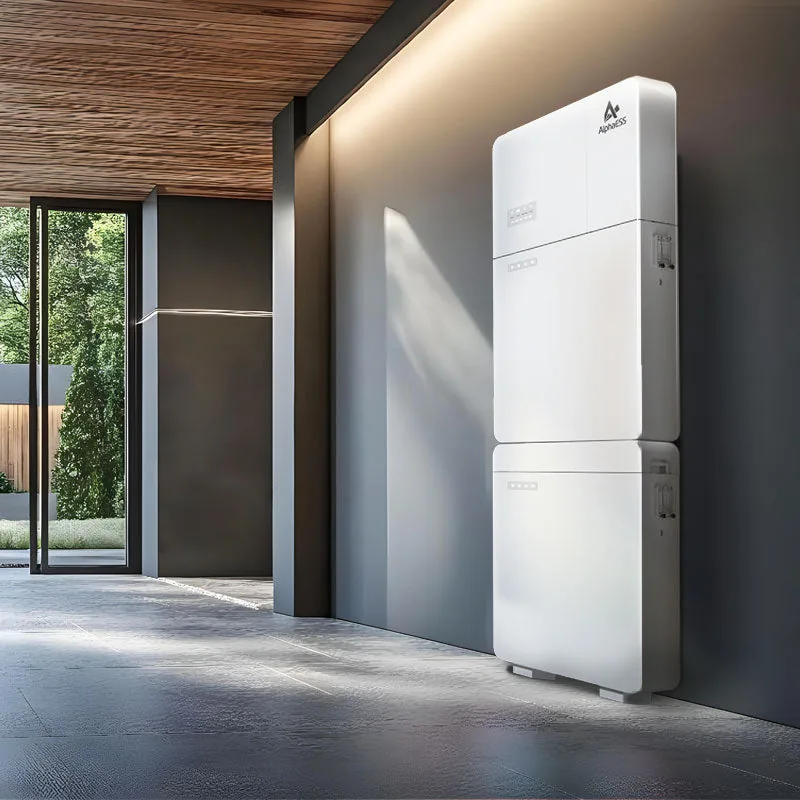

Inverter and battery in one cabinet.
The SMILE combines a compatible hybrid inverter, battery and controls. Final wiring and installation work depend on the property.
- Hybrid inverter and battery in a single all-in-one unit
- Backup circuits designed to the selected inverter's continuous and surge limits
- IP65 rated for indoor or sheltered outdoor mounting
- Reduced manual wiring, with app-based commissioning and self-checks
Capacity and compatibility
Specify the exact module and inverter.
AlphaESS's current M5 page lists a 5 kWh module in 1–6 module configurations, giving 5–30 kWh, and the SMILE-M-BAT-13.9P nominal 13.99 kWh module in 1–2 module configurations, giving 13.99–27.98 kWh. M10 compatibility differs, so the written quote should identify the inverter, battery module and count.
Module count alone does not establish which appliances can run or how long backup lasts. That depends on measured household loads, usable capacity, off-grid continuous and surge power, and the circuits included in backup.
If you may expand later, check the federal program rules at that time. Added capacity is only eligible where the existing system has not previously received the program discount and all current criteria are met.
5–30kWh
M5 · one to six 5 kWh modules
13.99–27.98kWh
M5 · one or two 13.99 kWh modules
What stands out
Straightforward storage, done properly.
Model-specific capacity
The current M5 page lists 5 kWh modules in 1–6 module configurations and 13.99 kWh modules in 1–2 module configurations. The quote should name the exact module.
Up to 200% PV input
Published PV input and MPPT limits differ between M5 and M10 variants, so the proposed array must be checked against the exact inverter model.
Fire suppression built in
Aerosol fire suppression is fitted inside the unit as standard, not sold as an add-on.
VPP integration ready
AlphaESS describes the system as VPP capable; compatibility and participation terms depend on the selected provider and current program rules.
Configuration checks
When the SMILE can fit.
- Fit: single-phase properties where the selected SMILE inverter and existing or proposed solar are compatible
- Fit: one or two 13.99 kWh modules (13.99 or 27.98 kWh nominal)
- Limitation: backed-up circuits must fit the selected inverter's off-grid continuous and surge ratings
- The written quote should state the precise model, nominal and usable capacity, property phase, backed-up circuits, off-grid continuous and surge output, and separate inverter and battery warranties.
The decision
What it costs, plainly.
The installed price depends on the SMILE inverter variant, module count, switchboard and metering work, backup circuits and cable route. These details are itemised in the written quote.
M5 and M10 are different inverters. The M10-S is published in 8, 9 and 10 kW variants, while the M5 is 5 kW. We match the variant to the proposed solar array or existing system.
Battery capacity alone does not decide which appliances run or for how long in an outage. That comes from measured loads, the inverter's off-grid continuous and surge ratings, and the written list of backed-up circuits.
Federal battery certificates are calculated on eligible usable capacity at the installation date. If you add capacity later, check the program rules current at that time.
See the full installed estimate
See an indicative estimate, then confirm the exact model, capacity, backup design, gross installed price and any eligible federal discount in writing.
Build my AlphaESS estimateVerified specifications
System type
All-in-one single-phase hybrid (inverter + battery), IP65
Inverter output — M5
5 kW nominal, up to 10 kWp of PV, 16 A max per MPPT
Inverter output — M10
8 / 9 / 10 kW nominal by variant, up to 20 kW of PV across four MPPTs
Newy configuration
1 or 2 × 13.99 kWh module = 13.99 or 27.98 kWh nominal

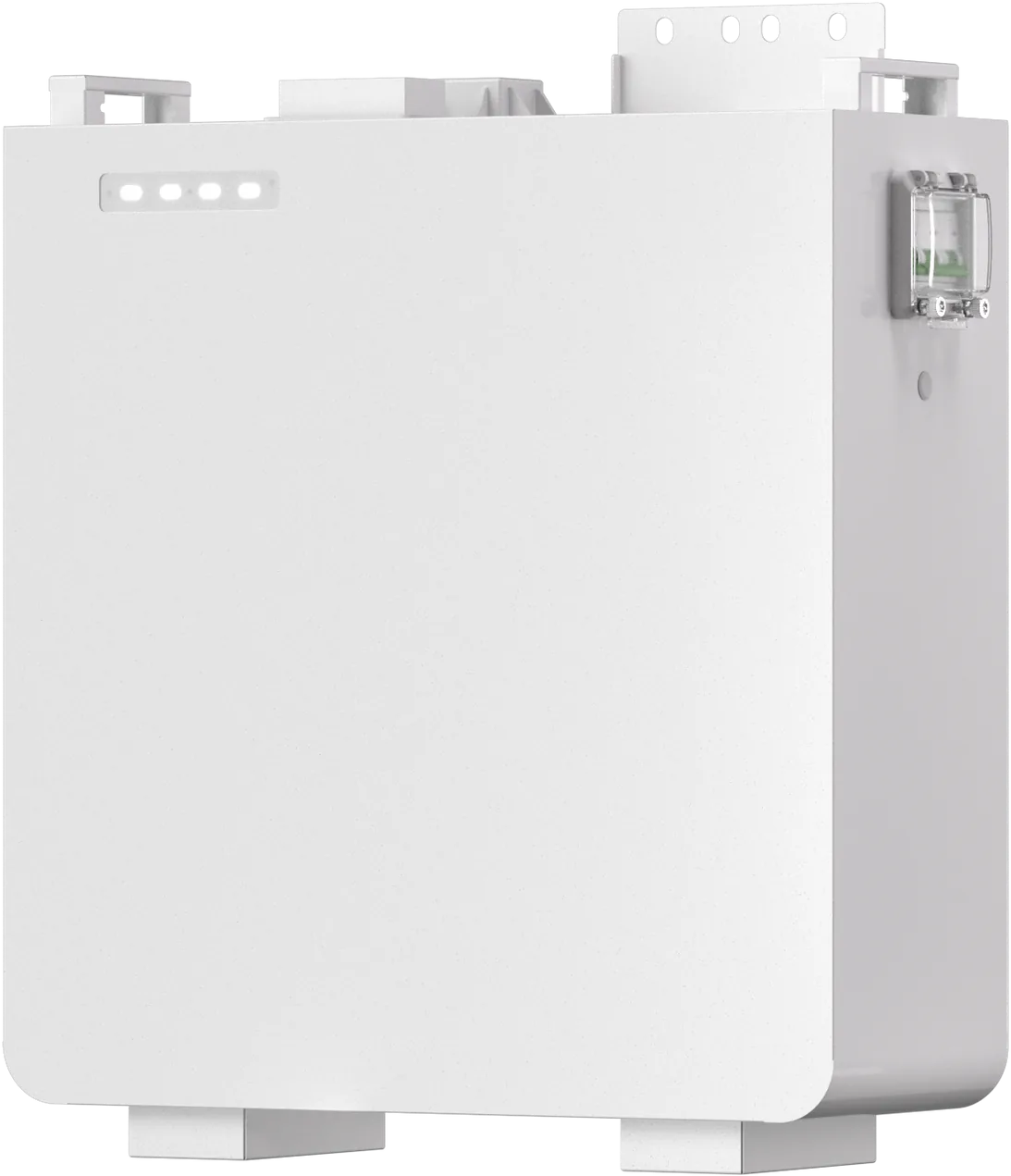

13.99 kWh battery module
SMILE-M-BAT-13.9P — 620 × 240 × 710 mm, 105 A charge / discharge, IP65
Cell chemistry
LFP (lithium iron phosphate)
PV oversizing
Up to 200% PV input
Backup
Selected circuits, listed in your written design
Operating temperature
-10°C to 50°C on the 13.99 kWh module
Battery warranty
Product: 10 years — AlphaESS AU warranty (January 2026) lists SMILE-M-BAT-13.9P. Performance: Retained-capacity terms for the exact 13.9P combination are supplied in writing with your quote. Inverter: M10: 10 years under the same AU document. M5 terms are supplied with your quote. Extension: None published for this combination.
Newcastle & Hunter installation
The technology is global. The accountability is local.
Every SMILE we fit is designed and installed by our own electricians out of Hamilton — licence 470217C. No subcontractor hand-off, from switchboard assessment through to commissioning.
Local solar and battery project — product model not recordedBefore you choose
Common questions.
01Can I add a second module later?
Newy quotes one or two 13.99 kWh modules. Adding the second later depends on inverter compatibility and the federal program rules current at that time.
02M5 or M10 — which one?
It depends on the solar configuration, simultaneous loads and required backup circuits. The written quote names the exact inverter variant and its continuous and surge output.
03Will it work with my existing solar?
We review the existing inverter, array, switchboard and metering first. Compatibility is set out in the written design.
